• Wi-Fi 7 delivers stunning gigabit speed performance in small to medium businesses

• Provide Wi-Fi coverage for up to 1,200 sq. ft. and support up to 500 connected devices

• Smooth streaming and video conferencing with unmatched speeds up to 10.8 Gbps

• Take advantage of Wi-Fi 7’s seamless connectivity for all your legacy devices

• Experience faster throughput and installation flexibility with up-to 100 meters away with the 2.5Gbe PoE+ port

• Protect your Wi-Fi with the latest WPA3 enterprise and WPA3 for top-notch security

• Easily manage all your AP’s with EnGenius Cloud and a user-friendly mobile AP from anywhere

• Quick network setup and management with simple device registration and remote monitoring

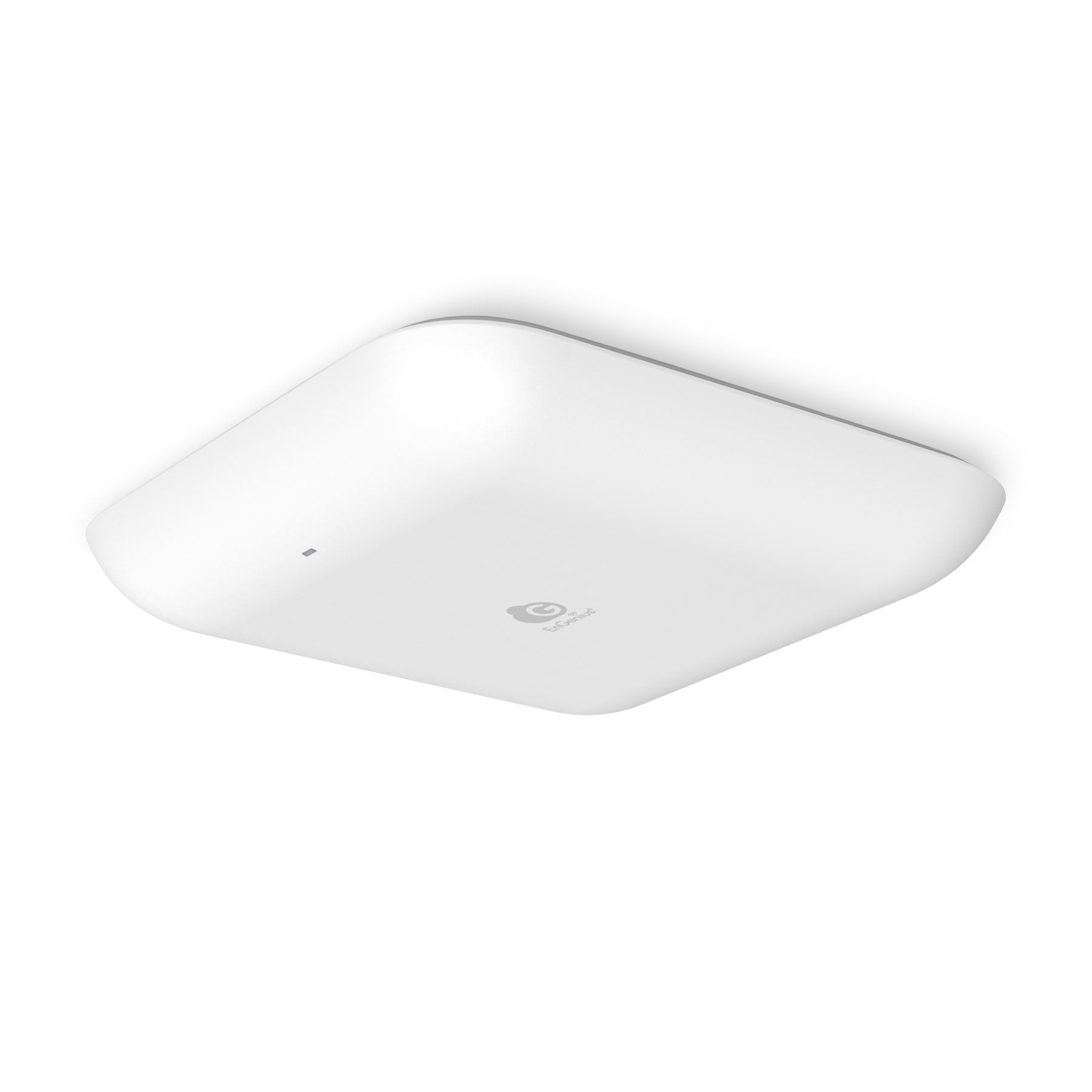

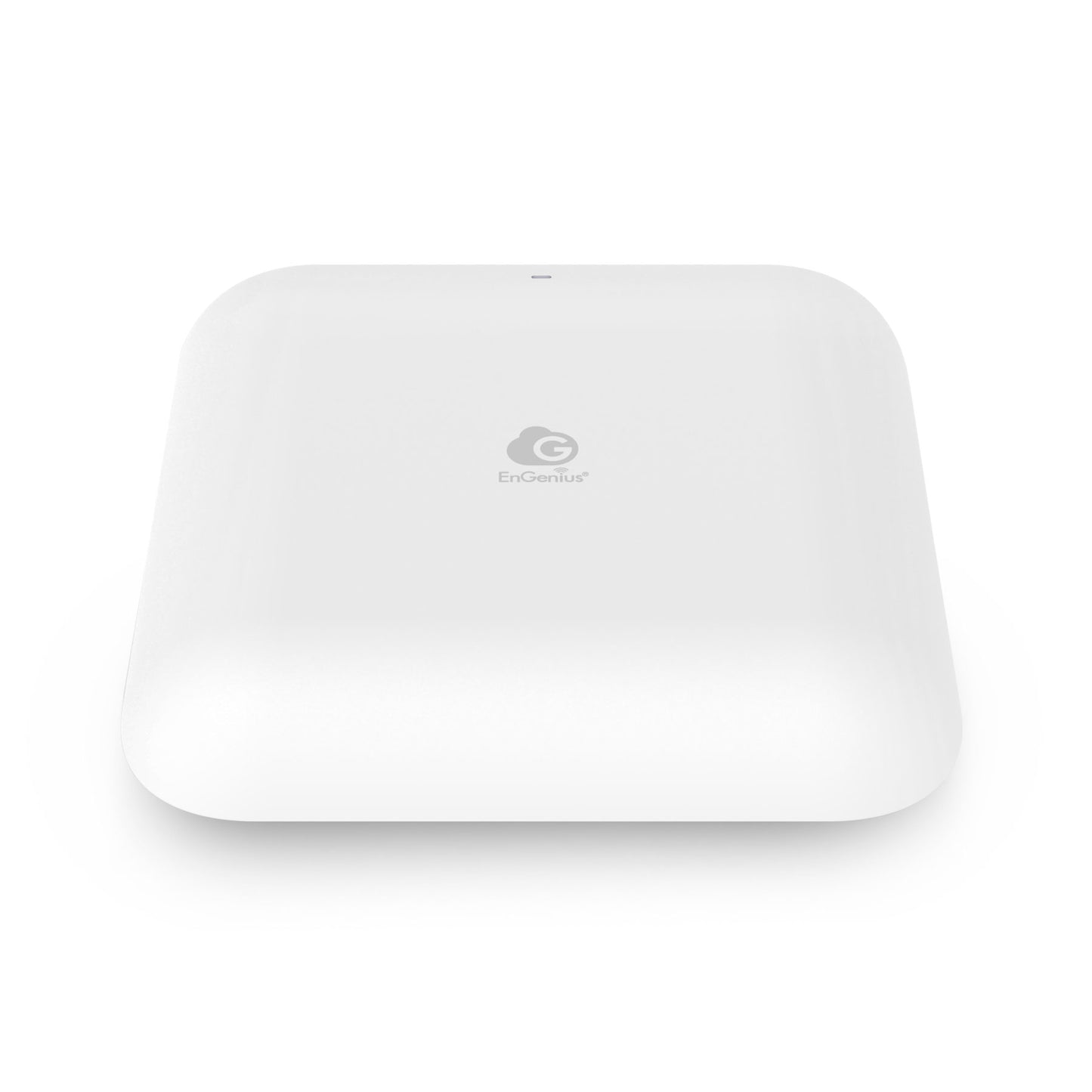

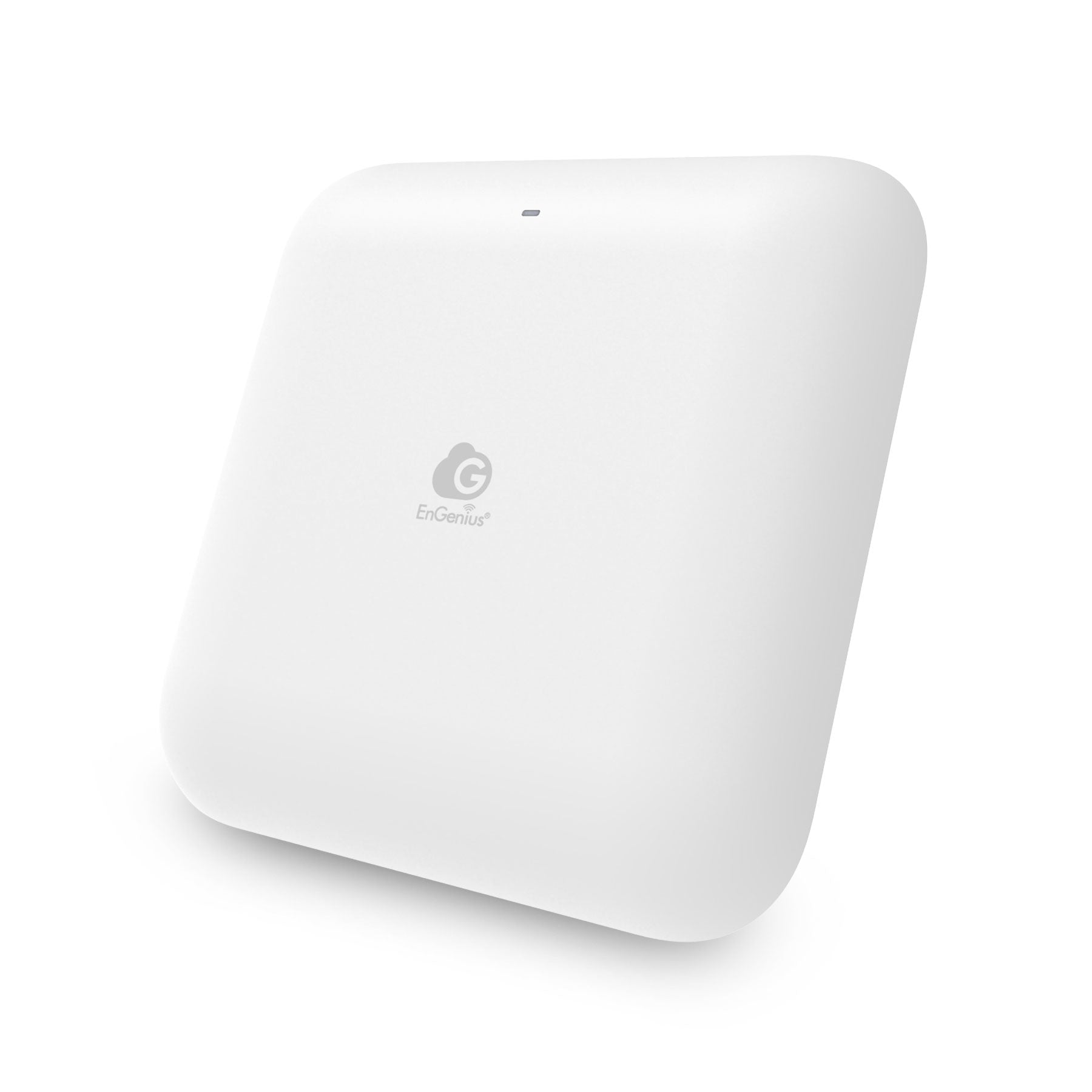

• Sleek and modern ceiling-mount design with LED lights, seamlessly blending into any environment

• Simple mounting and Kensington lock ensure a hassle-free and installation process

• Compatible with iPhone 16 Pro, MacBook Pro, iPad Pro, Galaxy S23, and Galaxy S23+

• Best for Professional Offices, Retail Stores, Hotels and Resorts, Multi-Dwelling Units, Assisted Living, Urgent Care, etc.

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
2 x 2.4 GHz: 6 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)

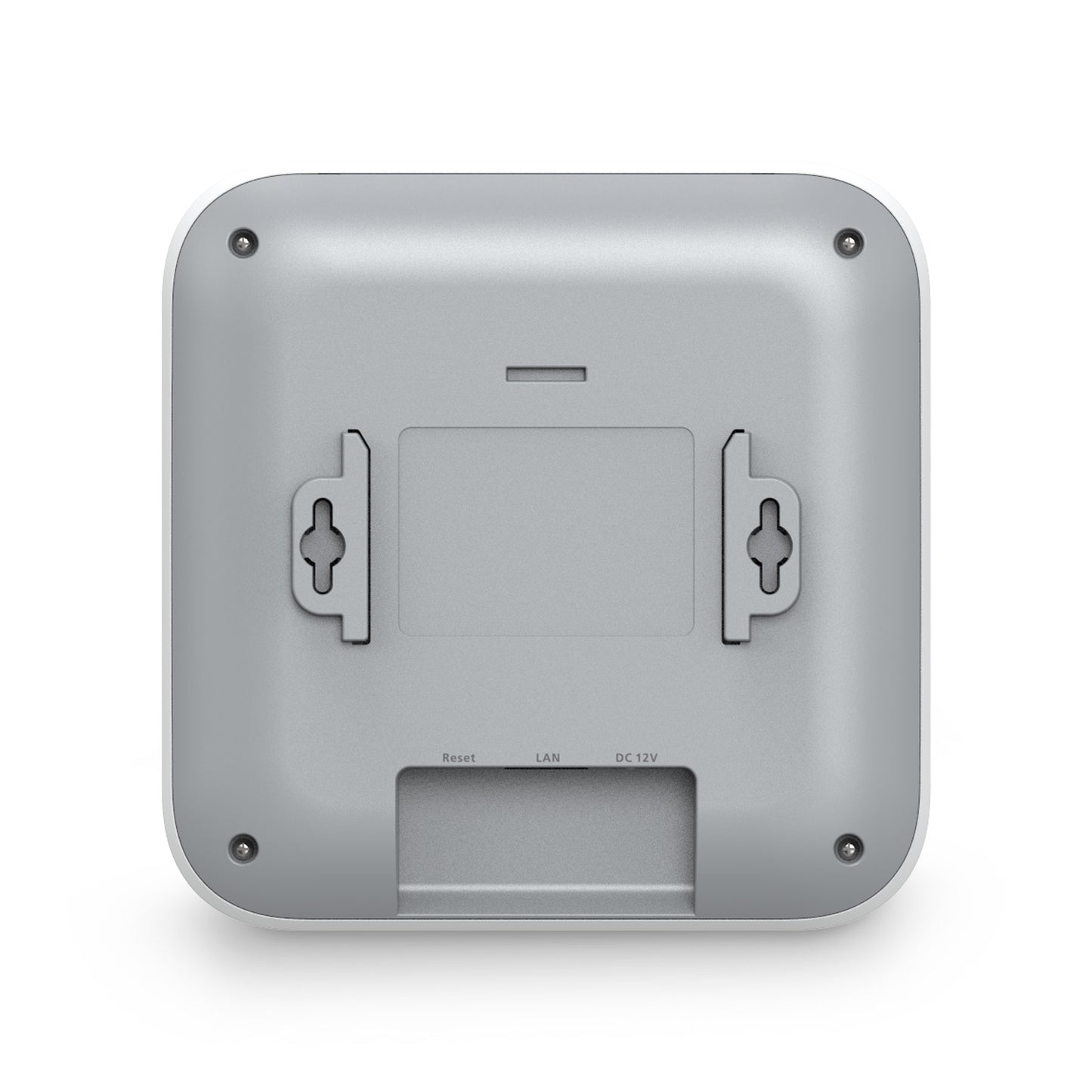

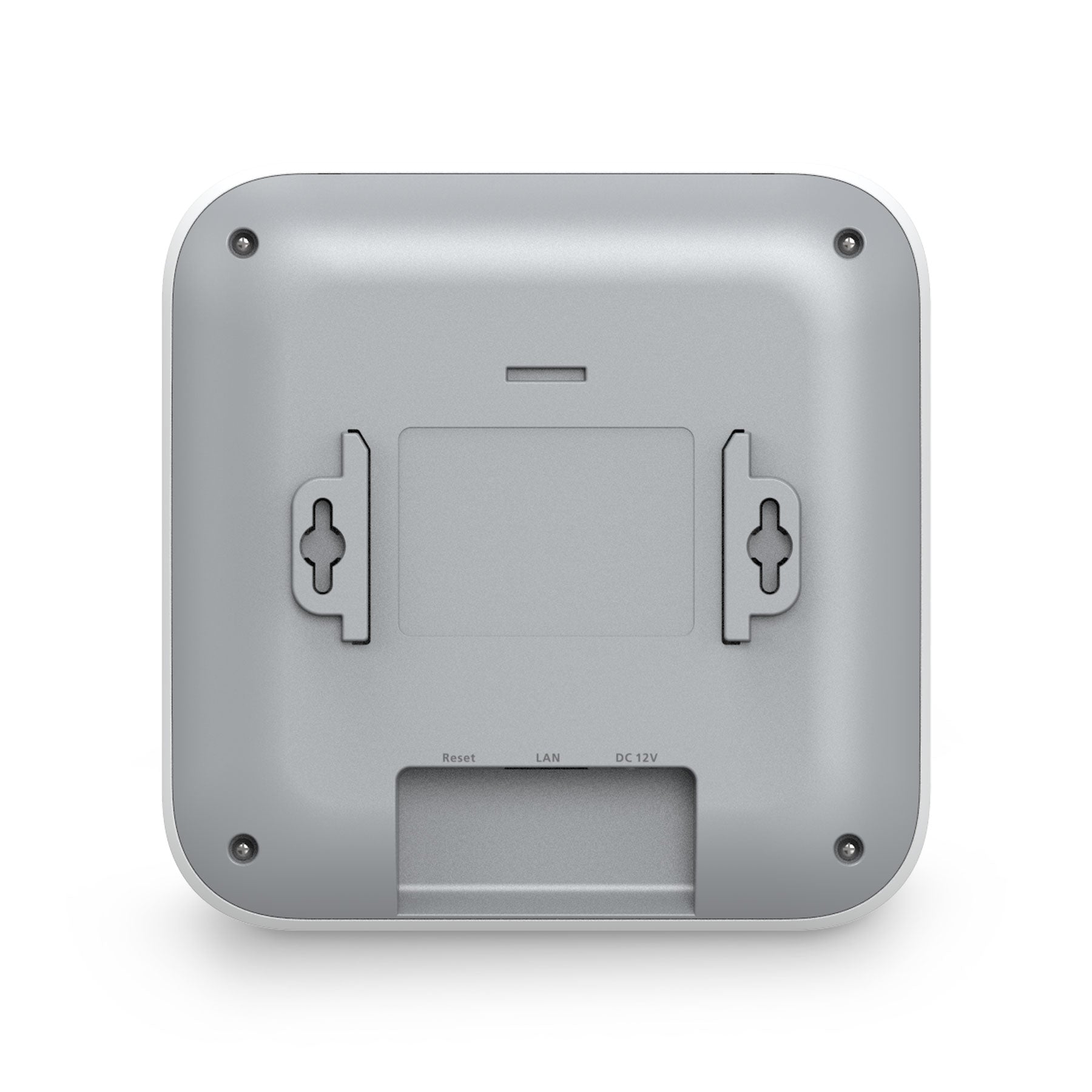

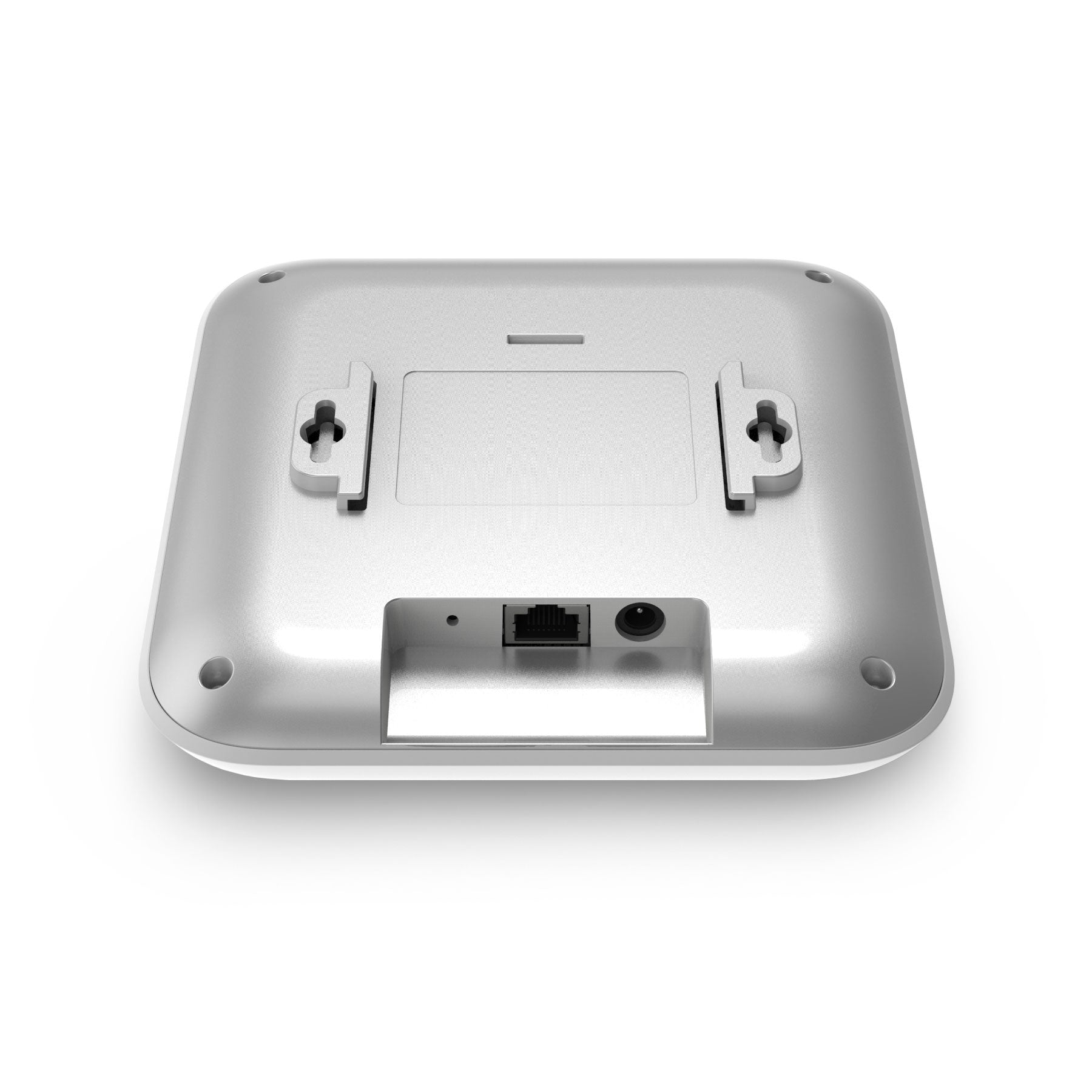

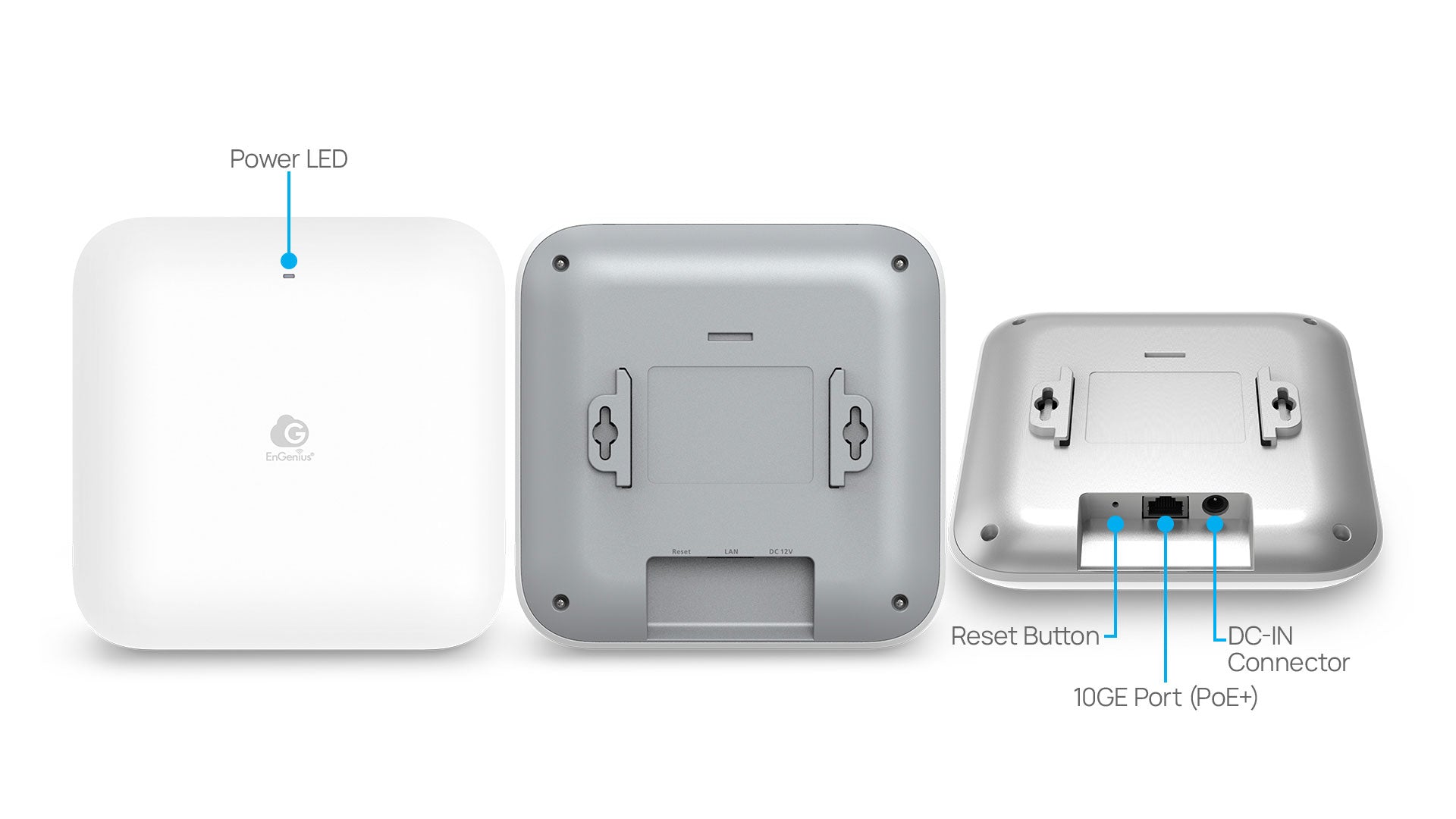

Physical Interface
1 x 2.5 GE Port (PoE+)
1x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-Color LED

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)

Maximum Power Consumption
25.4W

Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes

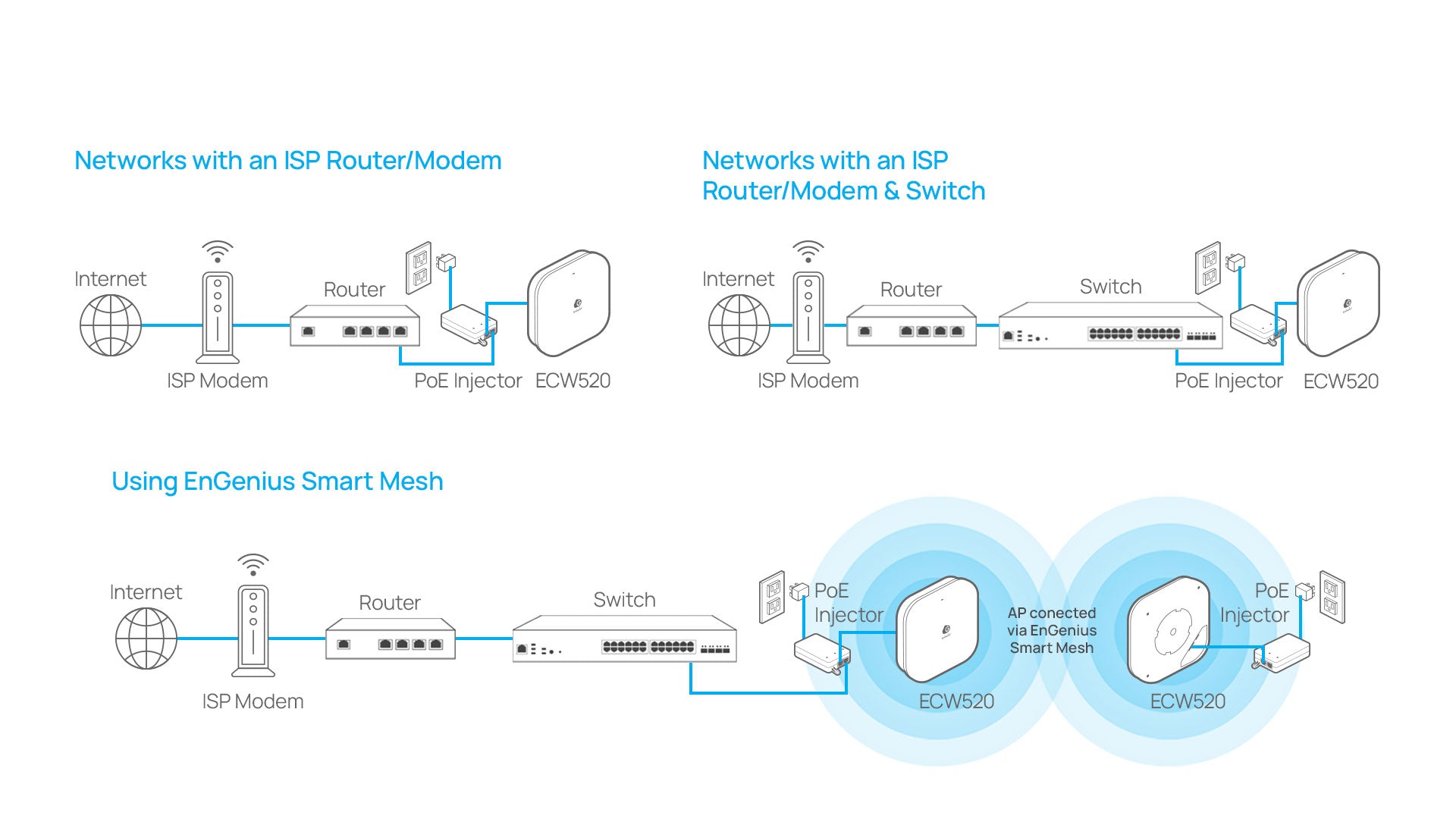

Managed Mode: AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 20 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2x2 wireless device under the 5GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2x2 wireless device under the 6GHz radio.

MU-MIMO
Two (2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2x2 wireless device under the 5GHz radio.
Two (2) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with EHT320 bandwidth to a 2x2 wireless device under the 6GHz radio.

Supported Data Rates (Mbps):
802.11be:
2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 4)
6 GHZ: Max 5,800 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 2,400 (MCS0 to MCS13, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240/320 (6 GHz only) MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent Users
Up to 500

Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Fast Roaming
802.11r/k

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
Client Isolation
L2 Isolation

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Network Ethernet Ports
1x 10/100/1000Mb, 2.5Gb Data Input; RJ-45

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

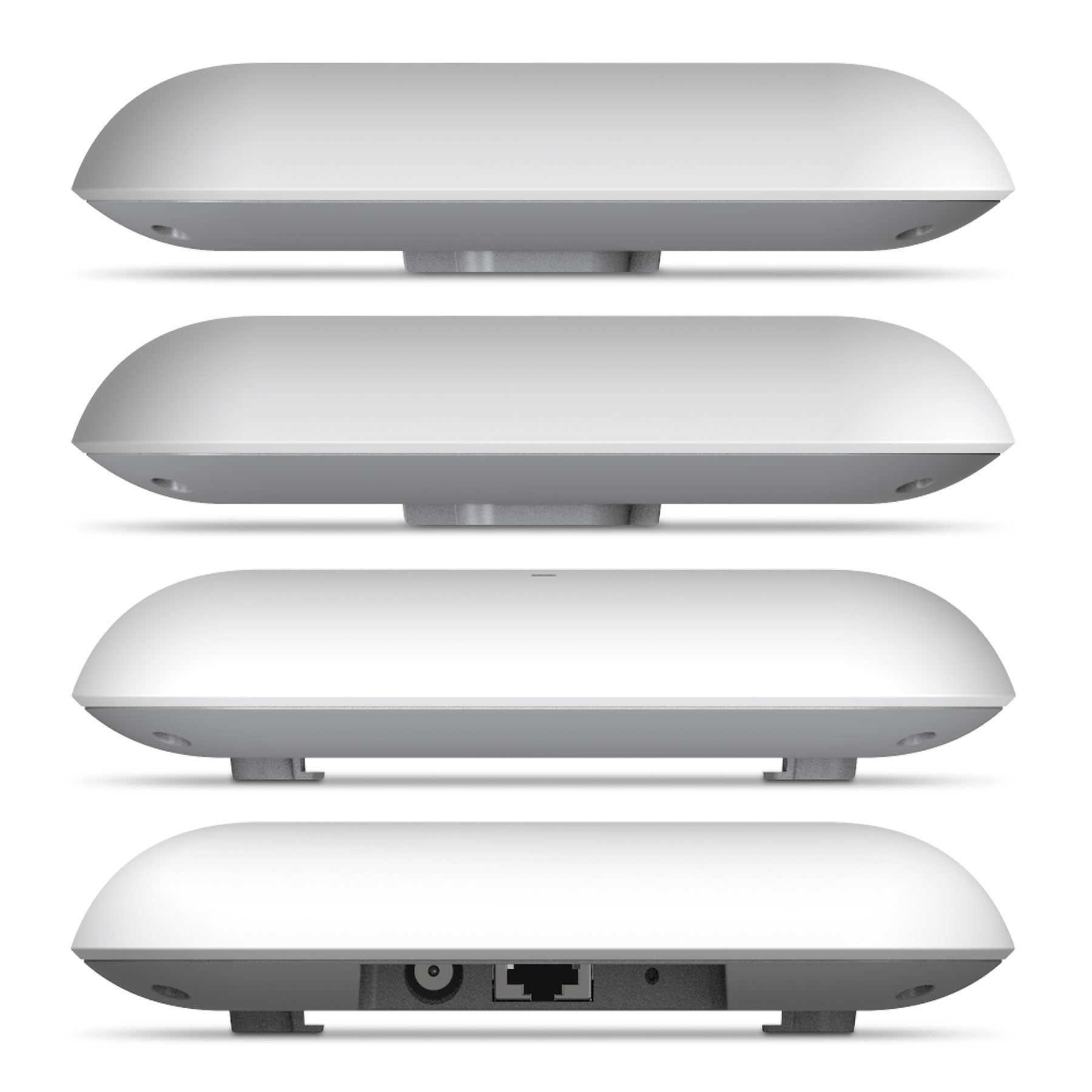

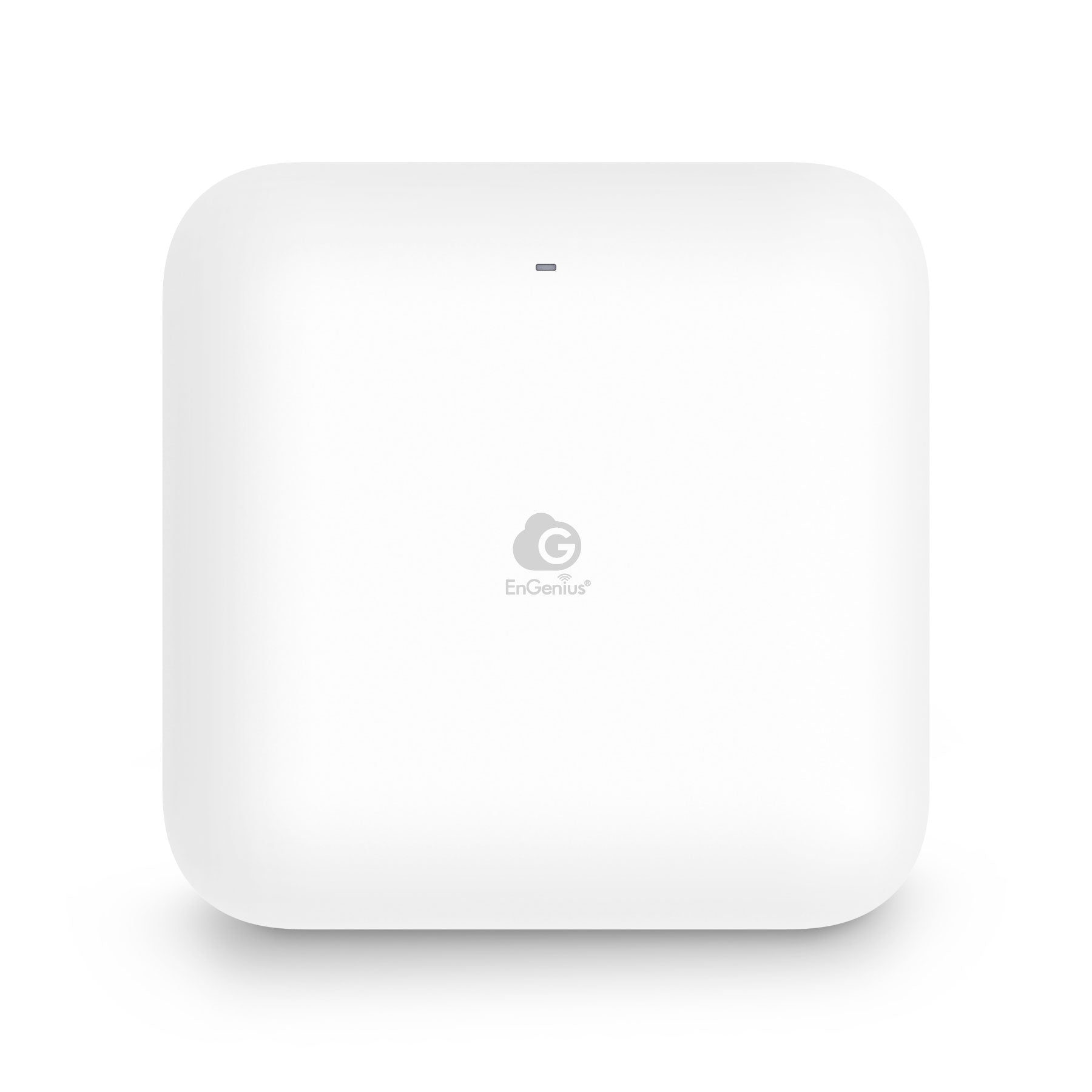

ECW520 Device
Weight: 1.32 lbs. (600 g)
Length: 6.22" (158 mm)
Width: 6.22" (158mm)
Height: 1.41" (35.8 mm)

ECW520 Packaging
Weight: 1.9 lbs. (860g)
Length: 8.15" (207 mm)
Width: 8.15" (207 mm)
Height: 3.43" (87 mm)

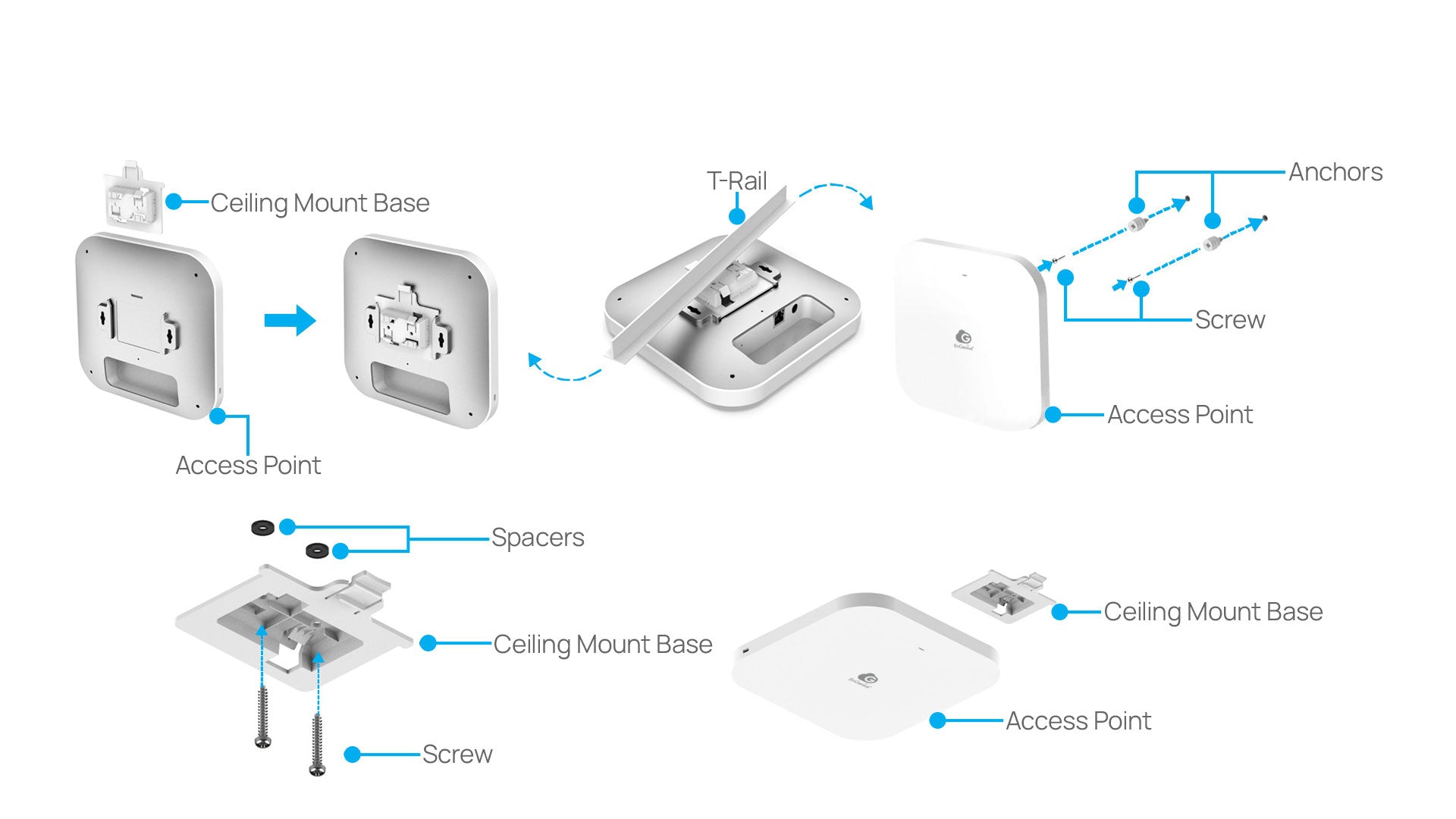

Package Contents
1 – ECW520 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” T-Rail)
1 – Ceiling Mount Base (15/16” T-Rail)
1 - Ceiling and Wall Mount Screw Kits
1 – Product Card

Certifications
FCC
CE
IC
UKCA

Warranty
5-Year Limited Hardware Warranty
